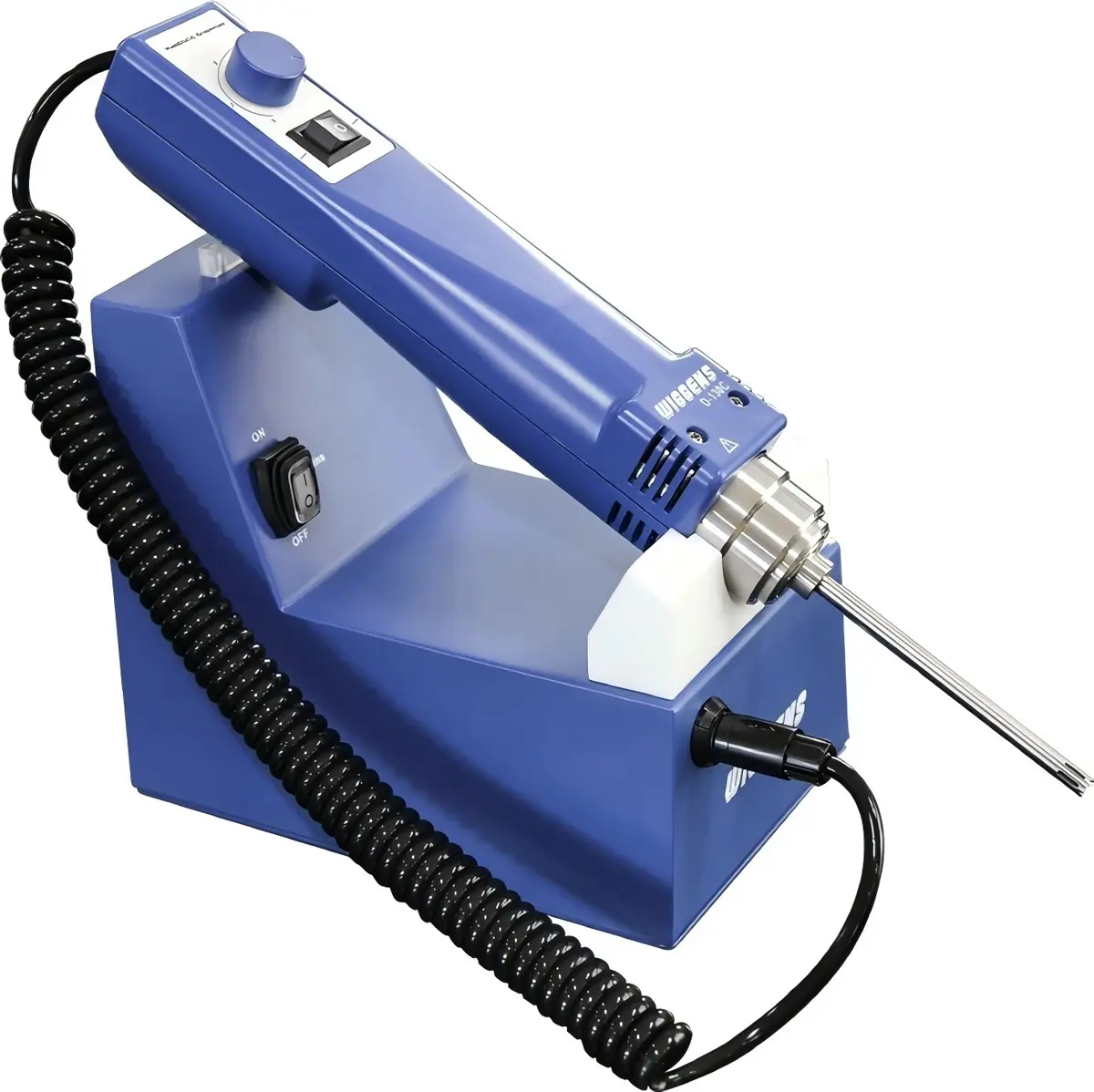

Handheld Design – Compact and lightweight for one-handed operation. During use, the dispersing head is immersed into the sample. The motor drives the rotor to rotate at high speed, homogenizing or dispersing the sample in the gap between the stator and rotor. This process typically completes in a very short time
Features
> Brushless DC motor
> Suitable for mixing, emulsifying, dispersing and shearing
> Handheld design, compact and lightweight for one-handed operation
> Sterilizable stainless steel dispersing head
> High-performance motor ensures speed stability (0-25,000 rpm)
> Quick-release coupling for easy assembly/disassembly of dispersing head
> Dual-switch power control for safety and preventing misuse
> Includes 2m spiral extension cable between main unit and handheld homogenizer for convenient operation
Application
> General homogenization applications (dispersion and emulsification)
> Homogenising of tumour tissue sample, for research of diverse tissue diseases
> Fast dissolving of pills, sugar-coated tablets for quality control purposes
> Sample preparation for subsequent extraction of pharmaceutical agents (API)
> Cell disruption, RNA / DNA isolation from tissue
> Dispersion of small quantities from plants, animals or human tissue
> Solving of solid materials
Specifications
Model | D-130C |
Order No. | W3050130 |
| Speed range with zero-load [rpm] | 0~25000 |
| Sample volume H2O [mL] | 0.2~50(H2O)/3~250(H2O) |
| Power [W] | 100 |
The wet part for dispersing shaft | 316L stainless steel and PTFE |
IP code | IP30 |
Base dimension W×D×H[mm] | 160×185×162 |
Handheld main unit dimension W×D×H[mm] | 44×58×226 |
Shaft for D-130C
Model | VolumeRange | LinearSpeed | RotorDiameter | StatorDiameter | Min/Max ImmersionDepth | Dispersed Particle Size(Micro) |
Shaft 5E | 0.5-50mL | 4.7m/s | 3mm | 5.5mm | 25/75mm | Suspensions 10-50 | Emulsions 1-10 |
Shaft 12E | 3-250mL | 14.1m/s | 9mm | 12mm | 40/110mm | Suspensions 10-50 | Emulsions 1-10 |
